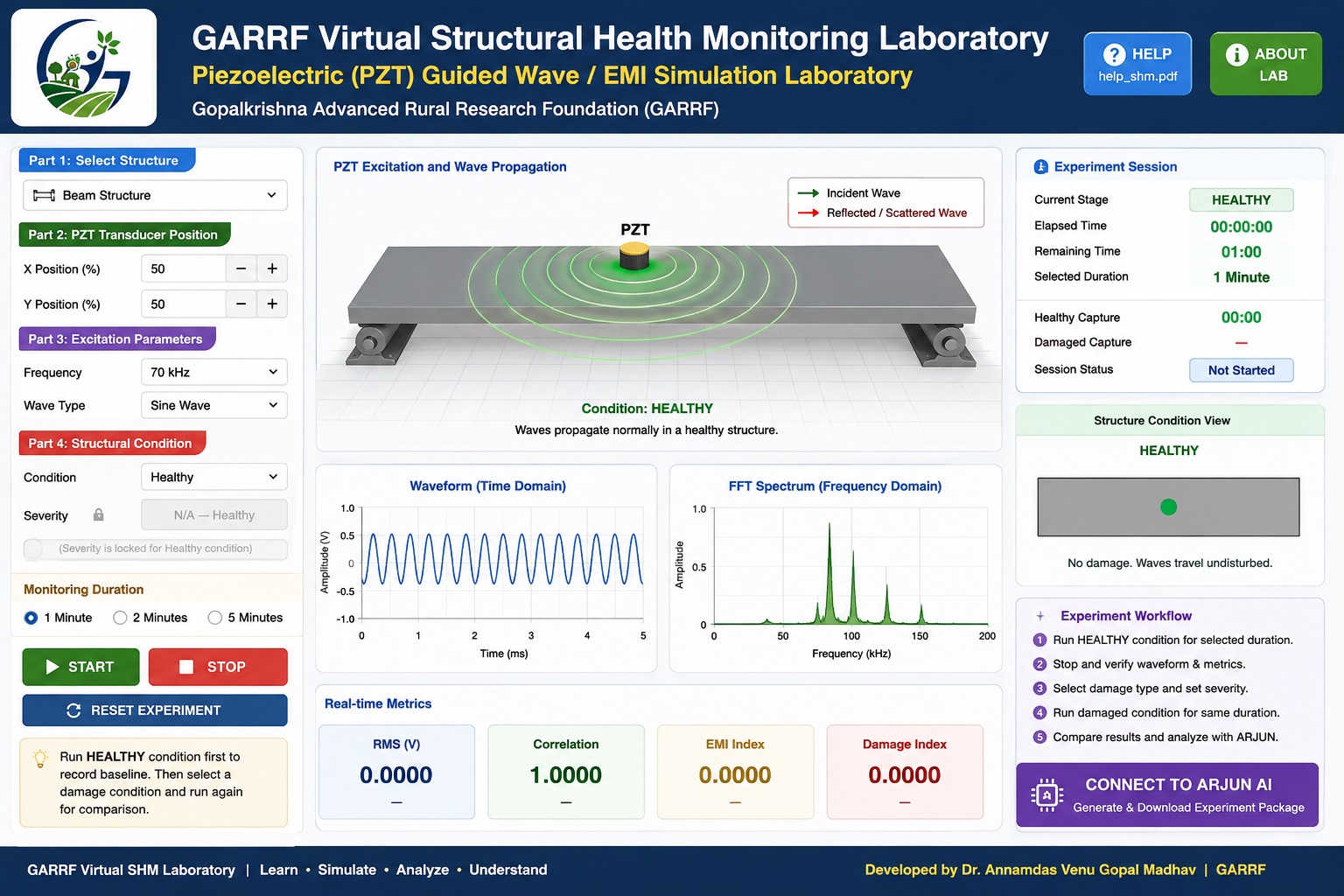

GARRF PZT Structural Health Monitoring Virtual Laboratory

Advanced Structural Health Monitoring — brought to rural students

This type of Structural Health Monitoring laboratory is commonly available in leading international universities and advanced research laboratories.

A few IITs and premier research institutes in India are actively working in Piezoelectric (PZT) based Structural Health Monitoring. GARRF is bringing an interactive virtual laboratory to rural students free of cost, so geography and financial limitations do not become barriers to advanced engineering education.

Developed by Dr. Annamdas Venu Gopal Madhav • 24+ Years Engineering, Research & Industry Experience • Two Decades International Experience Annamdas Shantanu Vasudev Krishna

PART 1 — EXPERIMENT SETUP

Structure PZT X position: 50% PZT Y position: 50% Excitation frequency: 70 kHz Excitation type

Sine Sweep Pulse

Monitoring duration

Monitoring: Not started
Purpose: Establish a healthy baseline or observe a simulated damage signature.

PART 2 — SIMULATED DAMAGE

Condition Severity: N/A — Healthy

Experiment concept

Electrical excitation drives the PZT. The bonded patch creates mechanical waves in the structure. A defect changes propagation, reflection, scattering and the sensed electrical response. The same simulated response is sent to Part 4.

EXPERIMENT SESSION

Run Healthy first for the selected monitoring duration. Then select a damage condition, choose severity, and run again. The session retains the Healthy → Damaged workflow for ARJUN.

HEALTHY CAPTURE 0 s

DAMAGED CAPTURE 0 s

PART 5 — ARJUN AI

Future GARRF AI layer for PZT/EMI, guided waves, FFT features and damage diagnosis.

PART 3 — LIVE STRUCTURAL WAVE VISUALIZATION ● READY

PZT actuator/sensor outgoing wave reflected wave damage Drag the PZT patch

SHM PHYSICS PIPELINE

PZT
Excitation

Mechanical
Waves

Propagation

Damage
Interaction

Reflection &
Scattering

PZT
Sensing

Signal
Acquisition

FFT →
Diagnosis
